Proximity Switches

Protocontrol make Proximity Switches that serve as a basic block of automation. Find application for Position - Speed - Direction - Revolution -Liner Speed measurement.

We are proximity switches manufacturer and also offering sensing solutions for all applications. You specify the requirement and we will help you to select suitable sensor from more than 2600 varieties we have. Every proximity sensor switches are designed for industrial application.

Most of our proximity carries CE mark.

Photoelectric Proximity Switches    Send Enquiry

photoelectric-proximity-switch

Optical proximity switches are used where higher sensing distance is required with non contact operation.

Types of Photoelectric Proximity Switches

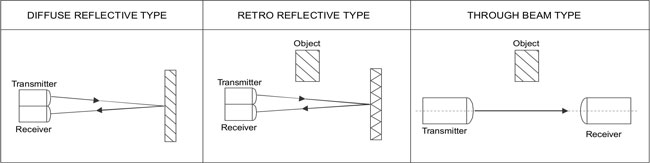

The object can be sensed by three methods


A) Diffused Reflective Type :

This is a fixed focused type of switch. Transmitter and receiver enclosed in one housing. Transmitted beam strikes on the object (when the object enters the sensing range ) and gets reflected by object surface. Receiver detects these rays and output signal is produced.

B) Retro Reflective Type :

Transmitter and receiver are housed in single housing and aligned with the reflector. The beam reflected by the reflector gets back to the receiver. Object breaking the light beam causes a change at the receiver. This change initiates an output signal.

C) Through Beam Type :

Transmitter and receiver are enclosed in two separate housings. When they are aligned light beam travels from transmitter to receiver. Object breaking the light beam causes a change in the receiver. This change is detected and output signal is produced to drive external relay

photoelectric-proximity-switch-method

Types Of Photoelectric Proximity Switches

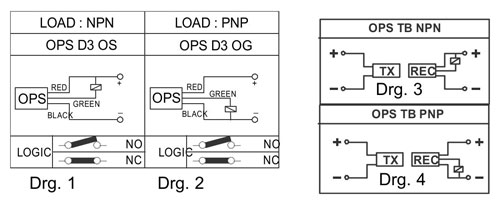

Three wire DC switch

Common Specifications :

  1. Suppply Voltage : 10-30V DC.
  2. Max. Load Current : 250 m Amp.
  3. Cable Length Per Switch : 2 Mtrs for standard models
    with built in cable.

Protections:

  1. Transient noise protection : provided
  2. Reverse polarity protection : provided
  3. Short circuit protection : provided

Cylindrical / Threaded Enclosure



Diffuse Type Built In Transmitter And Receiver In Single HousingOPS D3 MD

Size Sensing
Range
Output Mode Logic Working Fig No. Dimensions Wiring
Drg.
Type No.
            A B C L
M18X1 100 PNP NO DIFFUSE 1 60 20 - 80 2 OPS D3 OG NO M18D1
100 NPN NO DIFFUSE 1 60 20 - 80 1 OPS D3 OS NO M18D1
400 PNP NO DIFFUSE 1 60 20   80 2 OPS D3 OG NO M18D4
400 NPN NO DIFFUSE 1 60 20   80 1 OPS D3 OS NO M18D4
400 PNP NO DIFFUSE 3 17 38   32 2 OPS D3 OG NO M18DTQ4
400 NPN NO DIFFUSE 3 17 38   32 1 OPS D3 OS NO M18DTQ4

Retro Reflective Type, To Be Used With Reflector (Refer Accessories For Reflector)OPS D3 M R

Size Sensing
Range
Output Mode Logic Working Fig No. Dimensions Wiring
Drg.
Type No.
            A B C L
M18X1 2000 PNP NO RETRO 1 60 20 - 80 2 OPS D3 OG NO M18R2
2000 NPN NO RETRO 1 60 20 - 80 1 OPS D3 OS NO M18R2

Through Beam Type With Separate Transmitter And ReceiverOPS D3 M T

Size Sensing
Range
Output Mode Logic Working Fig No. Dimensions Wiring
Drg.
Type No.
            A B C L
M18X1 10000 PNP NO THR. BEAM 2 60 20 - 80 4 OPS D3 OG NO M18T10
10000 NPN NO THR. BEAM 2 60 20 - 80 3 OPS D3 OS NO M18T10

Mini , Long Range , Square Enclosure,Ip 65 OPS D3 B

Size Sensing
Range
Output Mode Logic Working Fig No. Dimensions Wiring
Drg.
Type No.
            A B C L
BLOCK 600 PNP NO DIFFUSE 4 50 50 18 APRX. 4 OPS D3 OG NO BD6
600 NPN NO DIFFUSE 4 50 50 18 APRX. 3 OPS D3 OS NO BD6
BLOCK 2000 PNP NO RETRO 4 50 50 18 APRX. 4 OPS D3 OG NO BR2
2000 NPN NO RETRO 4 50 50 18 APRX. 3 OPS D3 OS NO BR2
BLOCK 6000 PNP NO THR. BEAM 4 50 50 18 APRX. 4 OPS D3 OG NO BT6
6000 NPN NO THR. BEAM 4 50 50 18 APRX. 3 OPS D3 OS NO BT6

Supply : 90-230 V AC
Output : 1 NO relay contact rated for 2 Amp resistive at 230 V AC

Size Sensing
Range
Logic Working Fig No. Dimensions Wiring
Drg.
Type No.
          A B C L
BLOCK 500 NO DIFFUSE 4 50 50 18 APRX. 4 OPS A2 NO BD5
2000 NO RETRO 4 50 50 18 APRX. 4 OPS A2 NO BR2
6000 NO THR. BEAM 4 50 50 18 APRX. 4 OPS A2 NO BT6


Fiber Amplefier receives light from fiber optic cable, they are developed for sensing miniature object
precisely object of size 0.01mm can also be detected by switch.

Features:

  1. High speed response: 0.5 m Sec
  2. Abel to detect small targets and mount to tiny place
  3. Select suitable fiber optic cable
  4. With sensitivity adjustment, Light Source: Red light
  5. Power supply: 12 – 24 V DC
  6. Control Output: 100 m A

Supply : 90-230 V AC
Output : 1 NO relay contact rated for 2 Amp resistive at 230 V AC

Size Sensing
Range
Logic Working Fig No. Dimensions Wiring
Drg.
Type No.
          A B C L
BLOCK 500 NO DIFFUSE 4 50 50 18 APRX. 4 OPS A2 NO BD5
BLOCK 500 NO DIFFUSE 4 50 50 18 APRX. 4 OPS A2 NO BD5


Protocontrol offers variety of fiber optic cables to suite every application. Different sizes, shapes and offered with different cable length. Please inform your application so as to offer you suitable cable.

FOC TB : Through Beam
FOC D : Diffuse Reflective

Designed for general industrial use, Protocontrol Light Curtains find application in detecting physical interruption.


Applications :

  • Confirmation of ejection of Plastic moulded products.
  • Confirmation of component removal.
  • Detection of Person entering in restricted area.

Specifications :

  1. Light source : Infrared Light Diode.
  2. Control unit :
  3. Supply Voltage : 230V AC, 50 Hz.
  4. Input : From Light curtain sensor.
  5. Output : 2 C/o Relay contact.
  6. Contact Rating : 5 Amps. Resistive @ 230V AC.
  7. Enclosure : Sheet metal, IP 30.
No. Of Beams Beam
Pitch
Detecting Range Curtain Height Type No.

8 30 2 Meters 271 AS 8 30 2
16 30 2 Meters 510 AS 16 30 2
24 30 2 Meters 750 AS 24 30 2
