Proximity Switches

Protocontrol make Proximity Switches that serve as a basic block of automation. Find application for Position - Speed - Direction - Revolution -Liner Speed measurement.

We are proximity switches manufacturer and also offering sensing solutions for all applications. You specify the requirement and we will help you to select suitable sensor from more than 2600 varieties we have. Every proximity sensor switches are designed for industrial application.

Most of our proximity carries CE mark.

Magnetic Proximity Switches (MPS)   Send Enquiry

Magnetic Proximity Switches

Protocontrol make Magnetic Proximity Switches are designed for speed sensing application and position and direction sensing. Special hall effect switches are ideal for use in automobile speed sensing applications.

Types of Magnetic Proximity Switches
  • Magnetic Proximity Switch Reed Type, With Actuating Magnet
  • Magnetic Proximity Switch- Hall effect type : Solid state output

Our Products

Our Projects

Types of Magnetic Proximity Switches

Magnetic Proximity Switch Reed Type, With Actuating Magnet

These switches require a magnet for operation. The magnet is supplied with the switch. The reed element which is sealed in the switch operates when the magnet passes nearby.

Salient Features

  1. Non contact operation
  2. Potential free contacts suitable for 24 VDC / 240 VAC.
  3. High operating distance up to 25 mm.
  4. Totally enclosed - Robust - cast Al / Plastic enclosure for switch as well as magnet. IP 67.
  5. A Special stay-put type of switch is developed which can be used to sense direction.
  6. Operating Temp up to 0-120° C

Specification

  1. LOAD CURRENT : 1 Amp
  2. OPERATING VOLTAGE : 250 V Ac or Dc Max
  3. POWER : 80 VA max.
  4. HYSTERESIS : 25 %
  5. ENCLOSURE : Totally enclosed ,IP 67
  6. SWITCHING TIME ON : O.3 ms - 1.5.ms
  7. SWITCHING TIME OFF : 0.5 ms Max
  8. MECHANICAL LIFE : 1 x 106 TO 109 Operations depending on type of load
Sensing distance depends on the power of magnet. By increasing magnet power sensing distance will increase.

Magnetic Proximity Switch Reed Type, With Actuating Magnet

CylindricalMPS M R

Size Sensing
Range		 Logic Operation Fig. No. Dimensions Type No.
          A B C L
M12x1 10 NO INSTANTANEOUS 1 - - - 50 MPS NO M12RI
M18x1 10 NO INSTANTANEOUS 1 35 20 - 55 MPS NO M18 RI
M18X1 10 NO BISTABLE 1 35 20 - 55 MPS NO M18 RB


Rectangular EnclosureMPS B R

Size Sensing
Range		 Logic Operation Fig. No. Dimensions Type No.
          A B C L
Enclosure : Engineering plastic. With built in terminal box and terminals.
40x40X 20 1NO INSTANTANEOUS 3 40 40 30 112 MPS 1NO B 40 RI
120 mm 20 1CO BISTABLE 3 40 40 30 112 MPS 1CO B 40 RB
BLOCK 20 2NO INSTANTANEOUS 3 40 40 30 112 MPS 2NO B 40 RI
TYPE 20 2CO BISTABLE 3 40 40 30 112 MPS 2CO B 40 RB
Enclosure : Miniature enclosure, Plastic ( Xerox Sensor )
CONTACT RATING : 250 m Amp. Voltage : 30 V DC Max.
Ref. Drg 10 1NO INSTANTANEOUS 4 14 6 14.5 23 MPS 1NO B 14


Vane Operated : Slot EnclosureMPS S R

Size Sensing
Range		 Logic Operation Fig. No. Dimensions Type No.
          A B C L
Switches developed for vane operation.
Mounting is done by screws. The object M.S. (min. thickness 1 mm) moving through the shared cover the slot surface.
SLOT 15 1CO INSTANTANEOUS 2 50 25 20 60 MPS 1CO S 15 RI


Magnetic Proximity Switch-Hall Effect Type : Solid State Output

Features & Common Specifications

Magnetic Proximity Switch-Hall Effect Type : Solid State Output

  1. SUPPLY VOLTAGE : 5-30V DC.
  2. VOLTAGE DROP : Less than 0.5 V
  3. MAX. LOAD CURRENT : 250 mA.
  4. LEAKAGE CURRENT : Less than 2 mA
  5. ENCLOSURE : Refer drawing



Protections

  1. REVERSE POLARITY PROTECTION : Provided
  2. SHORT CIRCUIT PROTECTION : Provided
  3. PROTECTION AGAINST DAMAGE DUE TO BACK EMF GENERATED BY SWITCHING OF INDUCTIVE LOAD : Provided
  4. AMBIENT TEMP : -25 Degree cent to + 70 degree cent.
  5. HYSTERESIS : 3 TO 20 % Of sensing distance
  6. HOUSING PROTECTION CLASS : Totally enclosed, IP 67.
  7. MAX. OPERATING SPEED : 100 K Hz.
Size Sensing

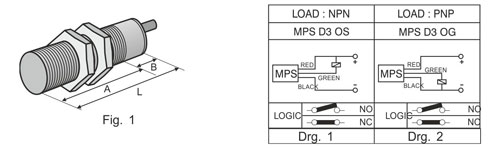

Range		 Logic Operation Fig. No. Dimensions Wiring
Diagram		 Type No.
          A B C L
M12X1 10 PNP NO 1 40 20 - 60 2 MPS D3 OG NO M12HE
10 NPN NO 1 40 20 - 60 1 MPS D3 OS NO M12HE
Switches in other enclosure available.

Magnetic Pick-Ups

Magnetic Pick-Ups

Magnetic pick up consists of permanent magnet, a pole piece and a sensing coil and electronic circuit. An object of iron, steel or other magnetic material passing closely by its pole face causes distortion of its magnetic flux field passing through sensing coil and pole piece, which in turn generate a signal voltage

Application : Magnetic pick ups are most widely used to sense teeth of a gear, timing belt wheel even bolt head, key-ways.





Magnetic Pick Up With Sine Wave Output PU

Dimension Sensing
Range		 Type No.

5 ⁄ 8 Inch × 70 1 PU 5 ⁄ 8
M 18 × 65 mm 1 PU M18
